臺達DRL系列導軌電源48V 120W / DRL-48V120W1AS
評論:0
收藏:0

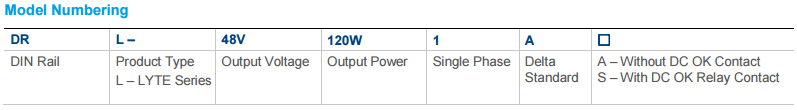

訂貨型號: 48V 120W / DRL-48V120W1AS
輸入電壓: 100-240Vac
輸出電壓: 48V
功率: 120W
外殼材料: 鋁殼
外形尺寸: 123.6 x 40 x 117.6 mm
商城價:
0.00
0.0
庫存狀態: 詢問貨期
品牌: 臺達
購買數量:
庫存量:0
產品保證
區域總代
正品保證
快速發貨
產品詳情
產品評論(0)
銷售記錄(0)
  • Up to 88.0% efficiency

  • Full power from -10°C to +50°C operation at 230Vac @ 5000 meters or 16400 feet altitude

  • Built-in DC OK relay contact option available

  • Compliance to SEMI F47 @ 200Vac

  • Conformal coating on PCBAs to protect against common dust and chemical pollutants



Dimensions (L x W x D) : 123.6 x 40 x 117.6 mm

4.87" x 1.57" x 4.63"
Unit Weight : 0.54 kg (1.19 lb)
Nominal Output Voltage
48V
Output Voltage Adjustment Range
44-56Vdc
Output Current
2.5A
Output Power
120W
Line Regulation
< 0.5% (@ 85-264Vac, 100% load)
Load Regulation
< 1% (0-100% load)
PARD (20mhz)
< 150mVpp @ > -10°C to +70°C
< 300mVpp @ ≤ -10°C to -20°C
Start-up Time
200ms typ. @ 115Vac & 230Vac (100% load)
Hold-up Time
20ms typ. @ 115Vac (100% load)
90ms typ. @ 230Vac (100% load)
Dynamic Response (Overshoot & Undershoot O/P Voltage)
± 10% @ 85-264Vac input, 0-100% load (Slew Rate: 0.1A/μs)
Start-up with Capacitive Loads
4,000μF Max
Nominal Input Voltage
100-240Vac
Input Voltage Range
85-264Vac
Nominal Input Frequency
50-60Hz
Input Frequency Range
47-63Hz
DC Input Voltage Range
120-375Vdc
Input Current
2.2A typ. @ 115Vac, 1.2A typ. @ 230Vac
Efficiency at 100% load
89%typ.@115Vac, 90% typ.@ 230Vac
Max Inrush Current
20A typ. @ 115Vac, 40A typ. @ 230Vac
Leakage Current
< 0.25mA @ 264Vac
Case Cover / Chassis
SGCC / Aluminium
Dimensions
123.6 x 40 x 117.6 mm
4.87" x 1.57" x 4.63"
Unit Weight
0.54 kg (1.19 lb)
Indicator
Green LED (DC OK)
Cooling System
Convection
Input Terminal
3 Pins (Rated 600V/35A)
Output Terminal
DRL-48V120W1AA: 4 Pins (Rated 300V/28A)
DRL-48V120W1AS: 6 Pins (Rated 300V/28A)
Noise Sound Pressure Level (SPL)
Sound Pressure Level (SPL) < 25dBA
Mounting Rail
Standard TS35 DIN Rail in accordance with EN 60715
Wire
Input: AWG 18-8
Output: AWG 24-12
Surrounding Air Temperature operating
-20°C to +70°C
Surrounding Air Temperature storage
-40°C to +85°C
Power De-rating
-10°C to -20°C de-rate power by 2%/°C
> 40°C de-rate power by 1.67% / °C @ 115Vac
> 50°C de-rate power by 2.5% / °C @ 230Vac
< 100Vac de-rate power by 1% / Vac
Operating Humidity
5 to 95% RH (Non-Condensing)
Shock Test (Non-Operating)
IEC 60068-2-27, 27, Half Sine Wave: 50G for duration of 11ms; 3 times per direction, 9 times in total
Shock (Operating)
IEC 60068-2-27, 27, Half Sine Wave: 10G for duration of 11ms; 1 time in X axis
Vibration Test (Non-Operating)
IEC 60068-2-6, Random: 5Hz to 500Hz; 2.09Grms; 20 min per axis for all X, Y, Z directions
Vibration (Operation)
IEC 60068-2-6, Sine Wave: 10Hz to 500Hz @ 19.6m/s? (2G peak); displacement of 0.35mm; 10 min per cycle, 60 min for X direction
Overvoltage
57.0V-67.2V, SELV Output, Latch Mode
Overload / Overcurrent
105-150% of rated load current, Continuous current
Over Temperature
Latch Mode
Short Circuit
Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)
Degree of Protection
IP20
Protection Against Shock
Class I with Primary Earth connection
MTBF
Telcordia SR-332: > 700,000 hrs

I/P: 100Vac, O/P: 100% load, Ta: 25°C

Electrical Safety
TUV Bauart: EN 60950-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E131881)
CCC: GB4943.1
CB scheme: IEC 60950-1
CE
In conformance with EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC
Galvanic Isolation
Input to Output: 3.0KVac
Input to Ground: 2.0KVac
Output to Ground: 0.5KVac
Emission
Generic Standards: EN 61000-6-3, EN 61000-6-4 CISPR 22, EN 55022, EN 55011, FCC Title 47: Class B; GB9254.1
Harmonic Current Emissions
IEC/EN 61000-3-2, Class A; GB17625.1
Voltage Fluctuation and Flicker
IEC/EN 61000-3-3
